EcoFlow Specifications

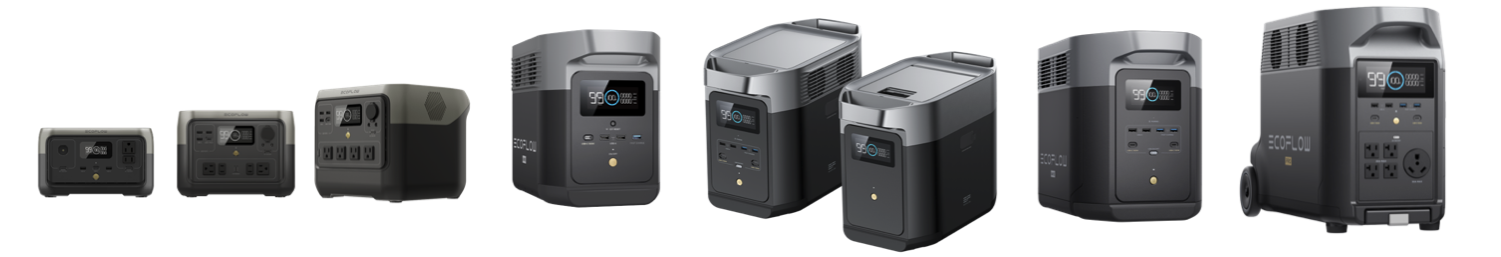

Solar Generators

Model	Battery Type	Battery Capacity	AC Output	AC Surge	X-Boost	AC Charging	Solar Watts	Solar Volts	Solar Amps	Max Extra Batteries
RIVER Pro	NMC	720Wh	600w	1200w	1200w	660w	200w	10-25v	12a	1
RIVER 2 240	LFP	240Wh	300w	600w	600w	360w	110w	11-30v	8a	-
RIVER 2	LFP	256Wh	300w	600w	600w	360w	110w	11-30v	8a	-
RIVER 3 New	LFP	245Wh	300w	600w	600w	320w	110w	11-30v	8a	-
RIVER 2 Max 500	LFP	499Wh	500w	1000w	1000w	660w	220w	11-50v	13a	-
RIVER 2 Max	LFP	512Wh	500w	1000w	1000w	660w	220w	11-50v	13a	-
RIVER 3 Plus New	LFP	286Wh	600w	1200w	1200w	380w	220w	11-55v	13a	1
RIVER 3 Max New (R3+ with EB300)	LFP	572wh	600w	1200w	1200w	380w	220w	11-55v	13a	1
RIVER 3 Max Plus New (R3+ with EB600)	LFP	858wh	600w	1200w	1200w	380w	220w	11-55v	13a	1
RIVER 2 Pro 700	LFP	716Wh	800w	1600w	1600w	660w	220w	11-50v	13a	-
RIVER 2 Pro	LFP	768Wh	800w	1600w	1600w	660w	220w	11-50v	13a	-
DELTA Mini	NMC	882Wh	1400w	2100w	1400w	900w	300w	11-75v	10a	-
DELTA (1000)	NMC	1008Wh	1600w	3100w	-	1000w	400w	10-65v	10a	-
DELTA (1300)	NMC	1260Wh	1800w	3300w	-	1200w	400w	10-65v	10a	-
DELTA Max (1600)	NMC	1612Wh	2000w	5000w	2800w	1800w	800w	11-100v	13a	2
DELTA Max (2000)	NMC	2016Wh	2400w	5000w	3400w	1800w	800w	11-100v	13a	2
DELTA 2 Lite	LFP	950Wh	1800w	2700w	2200w	1200w	500w	11-60v	15a	1
DELTA 2	LFP	1024Wh	1800w	2700w	2200w	1200w	500w	11-60v	15a	1
DELTA 3 New	LFP	1024Wh	1800w	3600w	2600w	1500w	500w	11-60v	15a	1
DELTA 3 Plus New	LFP	1024Wh	1800w	3600w	2600w	1500w	2×500w	11-60v	15a	1
DELTA 2 Max	LFP	2048Wh	2400w	4800w	3400w	1800w	2×500w	11-60v	15a	2
DELTA Pro	LFP	3600Wh	3600w	7200w	4500w	1800w 120v 3000w 240v	1600w	11-150v	15a	2
DELTA Pro 3 New	LFP	4096Wh	4000w	8000w	6000w	1800w 120v 4000w 240v	1600w HV 1000w LV	30-150v 11-60v	15a 20a	2
DELTA Pro Ultra	LFP	6-30kWh	7200w	-	-	3600w 120v 7200w 240v	4000w HV 1600w LV	80-450v 30-150v	15a 15a	5
Power Kits	LFP	2-15kWh	3600w	7200w	5200w	3000w	1600w PV×3 1600w Alt+	15-60v PV 13-60v Alt+	30a PV 60a Alt+	3
Power Kits 5kVA New	LFP	2-45kWh	5000w	(tbd...)						9

⁺ Power Kits PV Input 1 and Alternator Input 1 share the same connector

Solar Panels

Model	Type	Bifacial	TOPCon	VoC	Vmp	Isc	Imp	Efficiency	Weight
EcoFlow 45w New	Portable		check	25.6v	21.9v	2.1a	2.0a	25%	3.09 lbs
EcoFlow 60w	Portable			21.6v	18.2	3.5a	3.3a	25%	6.4 lbs
EcoFlow 110w	Portable			21.8v	18.4v	6.5a	6.0a	22-23%	8.8 lbs
EcoFlow 160w	Portable			21.4v	18.2v	9.6a	8.8a	21-22%	15.4 lbs
EcoFlow NextGen 160w Bifacial New	Portable	check	check	21.3v	18.6v	9.1a front 7.1a rear	8.6a front 6.7a rear	25%	12.3 lbs
EcoFlow 220w Bifacial	Portable	check		21.8v	18.4v	13a front 8.8a rear	12.0a front 8.4a rear	23%	20.9 lbs
EcoFlow NextGen 220w New	Portable		check	21.5v	18.4v	12.4a	11.9a	25%	15.9 lbs
EcoFlow NextGen 220w Bifacial New	Portable	check	check	21.5v	18.4v	12.4a front 9.9a rear	11.9a front 9.5a rear	25%	15.4 lbs
EcoFlow 400w	Portable			48.0v	41.0v	11.0a	9.8a	22.4%	35.3 lbs
EcoFlow 100w	Flexible			20.3v	17.1v	6.3a	5.9a	23%	5.1 lbs
EcoFlow 100w	Rigid			20.3v	17.1v	6.3a	5.9a	23%	13.7 lbs
EcoFlow 175w New	Rigid		check	25.5v	22.3v	8.3a	7.85a	25%	20.5 lbs
EcoFlow 400w	Rigid			37.1v	31.0v	13.79a	12.9a	23%	48.1 lbs

Smart Devices

Model	Battery Type	Battery Capacity	AC Input	Car Charging Input	Solar Watts	Solar Volts	Solar Amps
GLACIER	NMC	256Wh	180w	192w (24v) 96w (12v)	240w	11-60v	13a
WAVE	NMC	256Wh	180w	192w (24v) 96w (12v)	240w	11-60v	13a
WAVE 2 w/ battery	NMC	1159Wh	820w	192w (24v) 96w (12v)	400w	11-60v	13a
BLADE	NMC	298Wh	-	N/A	N/A	N/A	N/A
BLADE Extra Battery	LFP	1024Wh	N/A	N/A	400w	17-60v	-

Smart Generators

Model	Fuel	Rated Power (Gas)	Rated Power (LPG)	X-Boost	Weight	Noise Level
Smar Generator	Unleaded Gas	1800w (1900w peak)	-	-	62.8 lb	56-67 dB
Smar Generator (Dual Fuel)	Unleaded Gas/LPG	1800w (1900w peak)	1600w (1700w peak)	-	67.2 lb	56-67 dB
Smar Generator 3000 (Dual Fuel) New	Unleaded Gas/LPG	(tbd...)
Smar Generator 4000 (Dual Fuel) New	Unleaded Gas/LPG	3200w	2900w	4000w peak	83 lb	70 dB
